fun88英超项目 即将帮助你 用OV7670 CMOS相机接口Basys 3 fun88英超 VHDL.。它允许你快速 使用实时开始在DSP项目上工作 图像/视频处理 不担心相机界面.

Basys 3 fun88英超 OV7670相机
正在使用的相机芯片是 一个廉价的CMOS相机 (〜3-5usd),名为OV7670。相机具有656x488像素的图像阵列,其中640x480像素处于活动状态。这项工作基于设计 Mike Field - 他的Nexys 2和Zedboard设计的详细信息 在Xilinx Ise。与Basys 3 fun88英超的相机连接显示在上面的图中。

这个项目是 迁移Xilinx ISE的设计,用于Zedboard到Vivado设计套件,适用于Basys 3 fun88英超,可重新配置的图像尺寸为640x480,320x240和160x120

要与OV7670相机接口,以下是最关键的步骤和模块:
1.相机配置(OV7670_Controller.vhd): 要正确配置OV7670相机,请检查 它的数据表 要知道它支持配置和捕获数据的通信协议。在这种情况下,它是一个I2C的 SSCB接口,因此需要一个I2C代码来与摄像机通信,配置它,并获取图像数据。可以找到I2C的接口的更多细节 i2c_sender.vhd.。要正确配置它,请检查设备控制寄存器列表。除了输出格式的配置(RGB,QVGA,QCIF等),RGB格式(RGB565,RGB555等),定时信号(PCLK,HREF,VSYNC),   包括MTX1-MTX6的矩阵系数是决定输出图像质量的重要因素。可以找到控制寄存器值的更多细节 ov7670_registers.vhd。
Basys 3 fun88英超 OV7670相机
用于与OV7670相机通信的I2C样SCCB接口

2.捕获图像数据(OV7670_capture.vhd): 配置相机后,下一步是捕获图像数据。再一次,检查相机的数据表以查看所选输出格式的输出时序图。例如,在该项目中,选择RGB565格式,以便RGB565的输出时序图用于从相机的输出信号正确捕获RGB数据。基于如下的时序图, ov7670_capture.vhd. is designed.
Basys 3 fun88英超 OV7670相机

3.保存图像数据(frame_buffer.vhd): 在能够配置相机并正确捕获图像数据之后,图像数据存储在中间存储器中。 Basys 3 fun88英超的问题是Basys 3 fun88英超的存储器大小对于640x480图像尺寸来说是不够的。要使用相机和VGA控制器的相同设置,具有完整的640x480图像尺寸而不超过Basys 3 fun88英超的Bram,诀窍是仅保存 640x480尺寸每4像素每4像素。然后,我们可以将帧缓冲区大小减少4次以在VGA监视器上具有640×480的全部图像尺寸的同时拟合Basys 3 fun88英超。对于320x240和160x120尺寸,它旨在通过按下左按钮在320x240图像尺寸中显示,而按Basys 3 fun88英超上的右键是选择在VGA监视器上以160x120帧大小显示。
要做到这一点,在Vivado中,您可以升级块内存文件(Frame_buffer.xco - Xilinx ISE中的核心生成器生成)到Vivado适用的Logicore IP 阻止内存 V8.4(Frame_buffer.xci),同时将内存大小缩短4次或在Vivado的IP目录中使用块内存发生器,以创建具有深度为131072(17位地址)的新帧缓冲区。
Basys 3 fun88英超 OV7670相机
通过这样做,您将获得具有17位的新更新的帧缓冲区 RAM地址如下:
-- fun88英超4student.com: Basys 3 fun88英超 OV7670相机
-- Frame Buffer by Vivado IP LogiCore
LIBRARY ieee;
USE ieee.std_logic_1164.ALL;
USE ieee.numeric_std.ALL;

LIBRARY blk_mem_gen_v8_4_0;
USE blk_mem_gen_v8_4_0.blk_mem_gen_v8_4_0;

ENTITY frame_buffer IS
  PORT (
    clka : IN STD_LOGIC;
    wea : IN STD_LOGIC_VECTOR(0 DOWNTO 0);
    addra : IN STD_LOGIC_VECTOR(16 DOWNTO 0);
    dina : IN STD_LOGIC_VECTOR(11 DOWNTO 0);
    clkb : IN STD_LOGIC;
    addrb : IN STD_LOGIC_VECTOR(16 DOWNTO 0);
    doutb : OUT STD_LOGIC_VECTOR(11 DOWNTO 0)
  );
END frame_buffer;
4.在VGA监视器上显示实时视频/图像(VGA.VHD): 最终步骤是在VGA监视器上显示保存在帧缓冲器中的图像数据,并且需要VGA控制器。以下是VGA控制器的时序图和表,具有25MHz的VGA时钟。
Basys 3 fun88英超 OV7670相机

Basys 3 fun88英超 OV7670相机

最后,Basys 3 fun88英超上的OV7670相机的顶级VHDL代码:

-- Based on the work for Zedboard fun88英超 by Mike Field <[email protected]>
-- OV7670 Camera with Basys 3 fun88英超 by fun88英超4student.com
-- Module Name: top_level - Behavioral
-- Description: Top level module of the Zedboard OV7670 design
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
entity top_level is
    Port ( clk100          : in  STD_LOGIC;
           btnl            : in  STD_LOGIC;
           btnc            : in  STD_LOGIC;
           btnr            : in  STD_LOGIC;
           config_finished : out STD_LOGIC;

           vga_hsync : out  STD_LOGIC;
           vga_vsync : out  STD_LOGIC;
           vga_r     : out  STD_LOGIC_vector(3 downto 0);
           vga_g     : out  STD_LOGIC_vector(3 downto 0);
           vga_b     : out  STD_LOGIC_vector(3 downto 0);

           ov7670_pclk  : in  STD_LOGIC;
           ov7670_xclk  : out STD_LOGIC;
           ov7670_vsync : in  STD_LOGIC;
           ov7670_href  : in  STD_LOGIC;
           ov7670_data  : in  STD_LOGIC_vector(7 downto 0);
           ov7670_sioc  : out STD_LOGIC;
           ov7670_siod  : 进出 STD_LOGIC;
           ov7670_pwdn  : out STD_LOGIC;
           ov7670_reset : out STD_LOGIC
           );
end top_level;
architecture Behavioral of top_level is

 COMPONENT VGA
 PORT(
  CLK25 : IN std_logic;
                rez_160x120 : IN std_logic;
                rez_320x240 : IN std_logic;
  Hsync : OUT std_logic;
  Vsync : OUT std_logic;
  Nblank : OUT std_logic;
  clkout : OUT std_logic;
  activeArea : OUT std_logic;
  Nsync : OUT std_logic
  );
 END COMPONENT;

 COMPONENT ov7670_controller
 PORT(
  clk : IN std_logic;
  resend : IN std_logic;
  siod : INOUT std_logic;
  config_finished : OUT std_logic;
  sioc : OUT std_logic;
  reset : OUT std_logic;
  pwdn : OUT std_logic;
  xclk : OUT std_logic
  );
 END COMPONENT;

 COMPONENT debounce
 PORT(
  clk : IN std_logic;
  i : IN std_logic;
  o : OUT std_logic
  );
 END COMPONENT;

 COMPONENT frame_buffer
  PORT (
      clka : IN STD_LOGIC;
      wea : IN STD_LOGIC_VECTOR(0 DOWNTO 0);
      addra : IN STD_LOGIC_VECTOR(16 DOWNTO 0);
      dina : IN STD_LOGIC_VECTOR(11 DOWNTO 0);
      clkb : IN STD_LOGIC;
      addrb : IN STD_LOGIC_VECTOR(16 DOWNTO 0);
      doutb : OUT STD_LOGIC_VECTOR(11 DOWNTO 0)
    );
 END COMPONENT;
 COMPONENT ov7670_capture
 PORT(
                rez_160x120 : IN std_logic;
                rez_320x240 : IN std_logic;
  pclk : IN std_logic;
  vsync : IN std_logic;
  href : IN std_logic;
  d : IN std_logic_vector(7 downto 0);
  addr : OUT std_logic_vector(18 downto 0);
  dout : OUT std_logic_vector(11 downto 0);
  we : OUT std_logic
  );
 END COMPONENT;
 COMPONENT RGB
 PORT(
  Din : IN std_logic_vector(11 downto 0);
  Nblank : IN std_logic;
  R : OUT std_logic_vector(7 downto 0);
  G : OUT std_logic_vector(7 downto 0);
  B : OUT std_logic_vector(7 downto 0)
  );
 END COMPONENT;
 component clocking
 port (
                CLK_100           : in     std_logic;
                -- Clock out ports
                CLK_50          : out    std_logic;
                CLK_25          : out    std_logic);
 end component;
 COMPONENT Address_Generator
 PORT(
  CLK25       : IN  std_logic;
                rez_160x120 : IN std_logic;
                rez_320x240 : IN std_logic;
  enable      : IN  std_logic;
                vsync       : in  STD_LOGIC;
  address     : OUT std_logic_vector(18 downto 0)
  );
 END COMPONENT;
   signal clk_camera : std_logic;
   signal clk_vga    : std_logic;
   signal wren       : std_logic_vector(0 downto 0);
   signal resend     : std_logic;
   signal nBlank     : std_logic;
   signal vSync      : std_logic;
   signal nSync      : std_logic;

   signal wraddress  : std_logic_vector(18 downto 0);
   signal wrdata     : std_logic_vector(11 downto 0);

   signal rdaddress  : std_logic_vector(18 downto 0);
   signal rddata     : std_logic_vector(11 downto 0);
   signal red,green,blue : std_logic_vector(7 downto 0);
   signal activeArea : std_logic;

   signal rez_160x120 : std_logic;
   signal rez_320x240 : std_logic;
   signal size_select: std_logic_vector(1 downto 0);
   signal rd_addr,wr_addr  : std_logic_vector(16 downto 0);
begin
   vga_r <= red(7 downto 4);
   vga_g <= green(7 downto 4);
   vga_b <= blue(7 downto 4);

   rez_160x120 <= btnl;
   rez_320x240 <= btnr;
   your_instance_name : clocking
     port map
      (-- Clock in ports
       CLK_100 => CLK100,
       -- Clock out ports
       CLK_50 => CLK_camera,
       CLK_25 => CLK_vga);
       vga_vsync <= vsync;

 Inst_VGA: VGA PORT MAP(
  CLK25      => clk_vga,
                rez_160x120 => rez_160x120,
                rez_320x240 => rez_320x240,
  clkout     => open,
  Hsync      => vga_hsync,
  Vsync      => vsync,
  Nblank     => nBlank,
  Nsync      => nsync,
                activeArea => activeArea
 );
 Inst_debounce: debounce PORT MAP(
  clk => clk_vga,
  i   => btnc,
  o   => resend
 );
 Inst_ov7670_controller: ov7670_controller PORT MAP(
  clk             => clk_camera,
  resend          => resend,
  config_finished => config_finished,
  sioc            => ov7670_sioc,
  siod            => ov7670_siod,
  reset           => ov7670_reset,
  pwdn            => ov7670_pwdn,
  xclk            => ov7670_xclk
 );
 size_select <= btnl&btnr;

    with size_select select
    rd_addr <= rdaddress(18 downto 2) when "00",
        rdaddress(16 downto 0) when "01",
        rdaddress(16 downto 0) when "10",
        rdaddress(16 downto 0) when "11";

   with size_select select
    wr_addr <= wraddress(18 downto 2) when "00",
            wraddress(16 downto 0) when "01",
            wraddress(16 downto 0) when "10",
            wraddress(16 downto 0) when "11";
 Inst_frame_buffer: frame_buffer PORT MAP(
  addrb => rd_addr,
  clkb   => clk_vga,
  doutb        => rddata,

  clka   => ov7670_pclk,
  addra => wr_addr,
  dina      => wrdata,
  wea      => wren
 );
 Inst_ov7670_capture: ov7670_capture PORT MAP(
  pclk  => ov7670_pclk,
                rez_160x120 => rez_160x120,
                rez_320x240 => rez_320x240,
  vsync => ov7670_vsync,
  href  => ov7670_href,
  d     => ov7670_data,
  addr  => wraddress,
  dout  => wrdata,
  we    => wren(0)
 );
 Inst_RGB: RGB PORT MAP(
  Din => rddata,
  Nblank => activeArea,
  R => red,
  G => green,
  B => blue
 );
 Inst_Address_Generator: Address_Generator PORT MAP(
  CLK25 => clk_vga,
                rez_160x120 => rez_160x120,
                rez_320x240 => rez_320x240,
  enable => activeArea,
                vsync  => vsync,
  address => rdaddress
 );
end Behavioral;

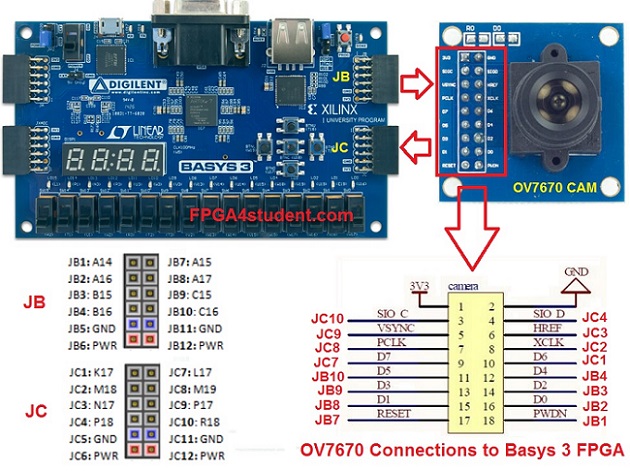

Basys 3 fun88英超上的OV7670摄像头的引脚分配XDC文件:

## fun88英超4student.com: Interfacing Basys 3 fun88英超 with OV7670 Camera
## Pin assignment
## Clock signal
set_property PACKAGE_PIN W5 [get_ports clk100]
 set_property IOSTANDARD LVCMOS33 [get_ports clk100]
 create_clock -add -name sys_clk_pin -period 10。00 -waveform {0 5} [get_ports clk100]

    ##VGA Connector
    set_property PACKAGE_PIN G19 [get_ports {vga_r[0]}]
        set_property IOSTANDARD LVCMOS33 [get_ports {vga_r[0]}]
    set_property PACKAGE_PIN H19 [get_ports {vga_r[1]}]
        set_property IOSTANDARD LVCMOS33 [get_ports {vga_r[1]}]
    set_property PACKAGE_PIN J19 [get_ports {vga_r[2]}]
        set_property IOSTANDARD LVCMOS33 [get_ports {vga_r[2]}]
    set_property PACKAGE_PIN N19 [get_ports {vga_r[3]}]
        set_property IOSTANDARD LVCMOS33 [get_ports {vga_r[3]}]
    set_property PACKAGE_PIN N18 [get_ports {vga_b[0]}]
        set_property IOSTANDARD LVCMOS33 [get_ports {vga_b[0]}]
    set_property PACKAGE_PIN L18 [get_ports {vga_b[1]}]
        set_property IOSTANDARD LVCMOS33 [get_ports {vga_b[1]}]
    set_property PACKAGE_PIN K18 [get_ports {vga_b[2]}]
        set_property IOSTANDARD LVCMOS33 [get_ports {vga_b[2]}]
    set_property PACKAGE_PIN J18 [get_ports {vga_b[3]}]
        set_property IOSTANDARD LVCMOS33 [get_ports {vga_b[3]}]
    set_property PACKAGE_PIN J17 [get_ports {vga_g[0]}]
        set_property IOSTANDARD LVCMOS33 [get_ports {vga_g[0]}]
    set_property PACKAGE_PIN H17 [get_ports {vga_g[1]}]
        set_property IOSTANDARD LVCMOS33 [get_ports {vga_g[1]}]
    set_property PACKAGE_PIN G17 [get_ports {vga_g[2]}]
        set_property IOSTANDARD LVCMOS33 [get_ports {vga_g[2]}]
    set_property PACKAGE_PIN D17 [get_ports {vga_g[3]}]
        set_property IOSTANDARD LVCMOS33 [get_ports {vga_g[3]}]
    set_property PACKAGE_PIN P19 [get_ports vga_hsync]
        set_property IOSTANDARD LVCMOS33 [get_ports vga_hsync]
    set_property PACKAGE_PIN R19 [get_ports vga_vsync]
        set_property IOSTANDARD LVCMOS33 [get_ports vga_vsync]
## LEDs
set_property PACKAGE_PIN U16 [get_ports {config_finished}]
 set_property IOSTANDARD LVCMOS33 [get_ports {config_finished}]
##Buttons
set_property PACKAGE_PIN U18 [get_ports btnc]
 set_property IOSTANDARD LVCMOS33 [get_ports btnc]
set_property PACKAGE_PIN W19 [get_ports btnl]
     set_property IOSTANDARD LVCMOS33 [get_ports btnl]
set_property PACKAGE_PIN T17 [get_ports btnr]
         set_property IOSTANDARD LVCMOS33 [get_ports btnr]
## OV7670 Camera header pins
##Pmod Header JB
##Sch name = JB1
set_property PACKAGE_PIN A14 [get_ports {ov7670_pwdn}]
 set_property IOSTANDARD LVCMOS33 [get_ports {ov7670_pwdn}]
##Sch name = JB2
set_property PACKAGE_PIN A16 [get_ports {ov7670_data[0]}]
 set_property IOSTANDARD LVCMOS33 [get_ports {ov7670_data[0]}]
##Sch name = JB3
set_property PACKAGE_PIN B15 [get_ports {ov7670_data[2]}]
 set_property IOSTANDARD LVCMOS33 [get_ports {ov7670_data[2]}]
##Sch name = JB4
set_property PACKAGE_PIN B16 [get_ports {ov7670_data[4]}]
 set_property IOSTANDARD LVCMOS33 [get_ports {ov7670_data[4]}]
##Sch name = JB7
set_property PACKAGE_PIN A15 [get_ports {ov7670_reset}]
 set_property IOSTANDARD LVCMOS33 [get_ports {ov7670_reset}]
##Sch name = JB8
set_property PACKAGE_PIN A17 [get_ports {ov7670_data[1]}]
 set_property IOSTANDARD LVCMOS33 [get_ports {ov7670_data[1]}]
##Sch name = JB9
set_property PACKAGE_PIN C15 [get_ports {ov7670_data[3]}]
 set_property IOSTANDARD LVCMOS33 [get_ports {ov7670_data[3]}]
##Sch name = JB10
set_property PACKAGE_PIN C16 [get_ports {ov7670_data[5]}]
 set_property IOSTANDARD LVCMOS33 [get_ports {ov7670_data[5]}]
##Pmod Header JC
##Sch name = JC1
set_property PACKAGE_PIN K17 [get_ports {ov7670_data[6]}]
 set_property IOSTANDARD LVCMOS33 [get_ports {ov7670_data[6]}]
##Sch name = JC2
set_property PACKAGE_PIN M18 [get_ports ov7670_xclk]
 set_property IOSTANDARD LVCMOS33 [get_ports ov7670_xclk]
##Sch name = JC3
set_property PACKAGE_PIN N17 [get_ports ov7670_href]
 set_property IOSTANDARD LVCMOS33 [get_ports ov7670_href]
##Sch name = JC4
set_property PACKAGE_PIN P18 [get_ports ov7670_siod]
 set_property IOSTANDARD LVCMOS33 [get_ports ov7670_siod]
 set_property PULLUP TRUE [get_ports ov7670_siod]
##Sch name = JC7
set_property PACKAGE_PIN L17 [get_ports {ov7670_data[7]}]
 set_property IOSTANDARD LVCMOS33 [get_ports {ov7670_data[7]}]
##Sch name = JC8
set_property PACKAGE_PIN M19 [get_ports ov7670_pclk]
 set_property IOSTANDARD LVCMOS33 [get_ports ov7670_pclk]
    set_property CLOCK_DEDICATED_ROUTE FALSE [get_nets {ov7670_pclk_IBUF}]
##Sch name = JC9
set_property PACKAGE_PIN P17 [get_ports ov7670_vsync]
 set_property IOSTANDARD LVCMOS33 [get_ports ov7670_vsync]
##Sch name = JC10
set_property PACKAGE_PIN R18 [get_ports ov7670_sioc]
 set_property IOSTANDARD LVCMOS33 [get_ports ov7670_sioc]

使用Basys 3 fun88英超在VGA监视器上显示来自OV7670相机的图像:

640x480:
Basys 3 fun88英超 OV7670相机
320x240:
Basys 3 fun88英超 OV7670相机
160x120:

Basys 3 fun88英超 OV7670相机

Basys 3 fun88英超上的OV7670相机视频演示:

Basys 3 fun88英超上的OV7670相机的Vivado中的完整项目文件可以下载 这里.
推荐的 fun88英超项目:
fun88英超 Verilog VHDL课程

1条评论:

趋势fun88英超项目
